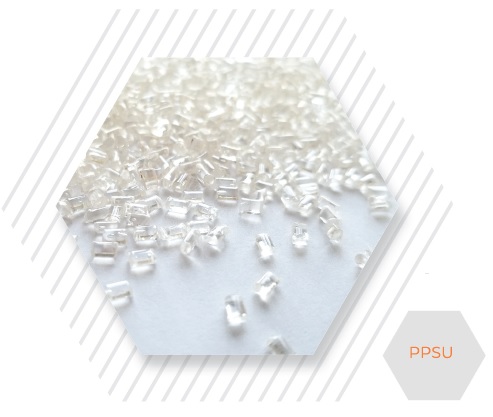

PPSU (Polyphenyl sulfone resin) is an amorphous thermoplastic super engineering plastic. It has strong impact toughness, chemical stability and hydrolysis resistance. The product can withstand repeated steam disinfection and can be used for a long time at l80°C.

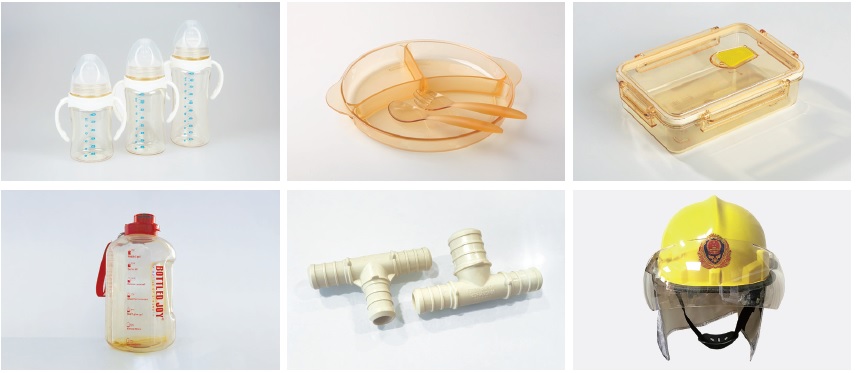

PPSU as the most ideal material for food contact, the reason why it can stand out among many materials, instead of glass, metal and ceramics, used in household goods and daily necessities, because it has the following advantages:

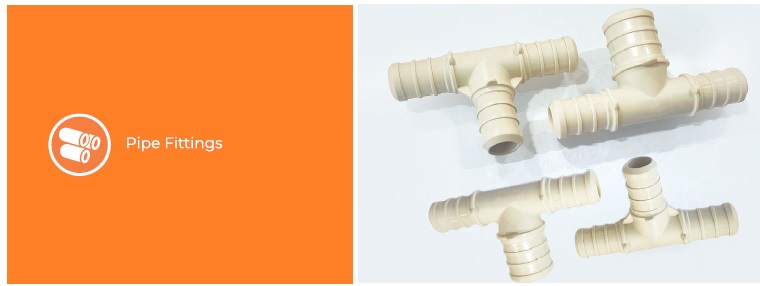

PPSU has good toughness and chemical resistance, excellent hydrolysis stability and dimensional stability, with high strength and stiffness, while having a certain toughness, can withstand large pressure and impact load, suitable for pipeline system components.
PPSU | PPSU Specification |
P200 | High viscosity, toughness, better impact resistance |
P300 | Medium viscosity, good machining performance, good toughness, excellent impact resistance, and excellent chemical resistance |
P300Q | Medium viscosity, the same mechanical properties and processing properties, with better optical properties, lighter color, higher light transmittance. |
P320 | Medium viscosity, good machining performance, and better fluidity while maintaining the inherent viscosity |
PSOO | Low viscosity with good fluidity |
P300BK | Medium viscosity, color changing material for plumbing fittings |

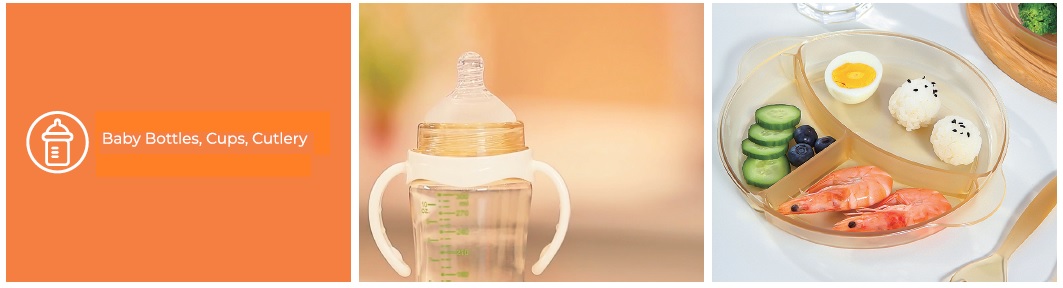

P300WH | Medium viscosity, special material for changing the color of tableware |
Grade Project | Test Method | PPSU | |||||||
Appearance | Visual | P200 | P300 | P300Q | P320 | P500 | P300BK | P300WH | |
Physical | Amber/ Transparent | Amber/ Transparent | Amber/ Transparent | Amber/ Transparent | Amber/ Transparent | Black | White | ||
Typical Value Unit | |||||||||
Specific Gravity | ASTM D792 | 1.29g/cm³ | 1.29g/cm³ | 1.29g/cm³ | 1.29g/cm³ | 1.29g/cm³ | 1.29g/cm³ | 1.33g/cm³ | |
Melt Mass-Flow Rate (360°C,5kg) | ASTM D1238 | 14+-2g/10 min | 27+-2g/10 min | 27+-2g/10 min | 22+-2g/ 10min | 50+-5g/ 10min | 20+-3g/ 10min | 20+-3g/ 10min | |
Water Absorption | -24h | ASTM D570 | 0.33% | 0.33% | 0.33% | 0.33% | 0.33% | 0.30% | 0.30% |
Equilibrium | ASTM D570 | 0.82% | 0.82% | 0.82% | 0.82% | 0.82% | |||
Molding Shrinkage-Flow Parallel Flow Direction | ASTM D955 | 0.90% | 0.90% | 0.90% | 0.90% | 0.90% | 0.90% | 0.90% | |
Molding Shrinkage-Flow Vertical Flow Direction | ASTM D955 | 0.01% | 0.01% | 1.01% | 1.01% | 1.01% | |||
Mechanical | Flexural Strength | ASTM D790 | 103MPa | 95MPa | 95MPa | 80MPa | 80MPa | 80MPa | 75MPa |
Flexural Modulus | AS.M D790 | 2260MPa | 2100MPa | 2100MPa | 2100MPa | 2010MPa | 2060MPa | 2080MPa | |
Tensile Modulus | ASTM D638 | 2450MPa | 2400MPa | 2400MPa | 2250MPa | 2280MPa | 2330MPa | 2200MPa | |
Tensile Strength | ASTM D638 | 85MPa | 75MPa | 75MPa | 75MPa | 68MPa | 71MPa | 70MPa | |
Break Tensile Elongation | ASTM D638 | 70%-120% | 70%-120% | 70%-120% | 70%-120% | 70%-120% | 60%-120% | 40%-100% | |
Notched Izod Impact | GB/T1843-2008 | 75KJ/m² | 65KJ/m² | 50KJ/m² | 50KJ/m² | 45KJ/m² | 35KJ/m² | 25KJ/m² | |
Optical | Yellowness Index | GB/T2410-2008 | 24 | 20 | 16 | 22 | 20 | ||
Haze | GB/T2410-2008 | 3 | 2 | 1.5 | 2 | 2 | |||
Light Transmittance | GB/T2410-2008 | 78% | 80% | 80% | 80% | 80% | |||
Thermal | Glass Transition Temperature | ASTM D648 | 222°C | 222°C | 222°C | 222°C | 222°C | 222°C | 222°C |
Deflection Temperature Under Load (1.82MPa) | ASTM D648 | 198°C | 198°C | 198°C | 198°C | 198°C | 195°C | 195°C | |
CLTE- Flow | AS M D696 | 5.7×10⁻5 | 5.7×10⁻5 | 5.7×10⁻5 | 4.6×10⁻5 | 5.7×10⁻5 | 4.0×10⁻5 | 4.6×10⁻5 | |
Thermal Decomposition Temperature | ASTM D3850 | 554°C | 554°C | 554°C | 554°C | 554°C | 554°C | 554°C | |
Melting Point | ISO3146 | ||||||||
Electrical | Dielectric Constant(60Hz) | ASTM D150 | 3.55 | 3.55 | 3.55 | 3.55 | 3.55 | 3.55 | 3.55 |
Dielectric Loss Factor (60Hz) | ASTM D150 | 6.0×10⁻³ | 6.0×10⁻³ | 6.0×10⁻³ | 6.0×10⁻³ | 6.0×10⁻³ | 6.0×10⁻³ | 6.0×10⁻³ | |
(50Hz/2.3mm) | ASTM D149 | 21.56Kv/mm | 21.56Kv/mm | 21.56Kv/mm | 21.2Kv/mm | 21.56Kv/mm | 21.2Kv/mm | 21.2Kv/mm | |
Dielectric Strength(2.3mm) | ASTM D257 | 3.09×10¹³ | 3.09×10¹³ | 3.09×10¹³ | 1.94×10¹³ | 3.09×10¹³ | 1.94×10¹³ | 1.94×10¹³ | |
Resistance to Electrical Straining Index | GB/T4207-2012 | PTI 125 pass | PTI 125 pass | PTI 125 pass | PTI 125 pass | PTI 125 pass | |||
Flammability | Flame Rating | UL94-2013 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 |
Injection | Drying Time | 5h | 5h | 5h | 4h | 5h | 4h | 4h | |
Drying Temperature | 150-170°C | 150-170°C | 150-170°C | 150-170°C | 150-170°C | 150-170°C | 150-170°C | ||
Processing Temperature | 330-370°C | 330-370°C | 330-370°C | 330-370°C | 330-370°C | 330-370°C | 330-370°C | ||
Mold Temperature | 130-160°C | 130-160°C | 130-160°C | 130-160°C | 130-160°C | 130-160°C | 130-160°C | ||
